Overclocked E1705/9400 7900 GS Benchmark Results - Page 8

post #141 of 741
6/27/06 at 12:14am

New Stable Clocks

A new High verified with ATI Tool for NO ARTIFACTS.

Still tweaking but not as often. Thanks to everyone for the great info on these forums!

4813 - PcGeek04 - T2500 2.0Ghz / 2GB 533Mhz / WUXGA / 100GB 5400rpm/ Single-pipe / Stock Dell Driver / 90watt@ 600 / 1100 / 1.24v

CPU - T2500 2.0GHz
Memory - 2GB 533MHz
Screen - WUXGA
HD Size/Speed - 100GB 5400
Single Pipe
Driver - Stock Dell
Power Supply - 90W
Core/Memory/Voltage - 600/550/1.24V
3DMark06 - 4813

Attachment 10560

Attachment 10561

damn those pics came out really bad... will try to get clear ones posted tomorrow.
LL
LL
Reply
Reply
post #142 of 741
6/27/06 at 12:16am
Awesome job guys
Reply
Reply
post #143 of 741
6/27/06 at 12:30am
i think we do need some verification of artifacting, I can score 5k easy on 3dmark06... as long as I completely ignore the massive amount of visual artifacts during the Return to ProxyCon and Firefly and DragonAirship and DeepFreeze sequences.

OK, maybe i am a bit jealous.. hee hee, but yeah, artifact scores are a bit nuts I think.

I still have plenty of work to do with tweaks and such but damn those are some rockin scores everyone is pumpin out!!!!

Ace... if your artifact free... AWSOME JOB MAN. If not.. well.. to each his own.
Reply
Reply
post #144 of 741
6/27/06 at 12:51am
I agree Pcgeek04, overclocked scores really don't mean much if your getting artifacts...

Thats like seeing who can get their card to malfunction (artifact) the most, before totally failing, doesn't really make sense at all

I believe an OC score w/o artifacts is very important for the simple reason that if your getting artifacts, it's really not useable at that speed in gaming, and isn't that what 3DMark is supposed to measure?
Reply
Reply
post #145 of 741
6/27/06 at 2:19am
Im hitting a temp barrier going from 575/1150 to 600/1200 the score didnt change one bit likely due to temp declocking but my ram seems to like high speeds. *EDIT Well AMAZINGLY my scores seem to do very well on lower core speeds so im set on 550/1200. I did about 15 minutes of ATItool before i got tired of it and noticed no change for about 10 minutes and the temps top out at 89c no artifacting of course. Im certain going higher just declocks the card as i get the exact same score using the other 2 settings ive mentioned and they top out at 92c before declocking both did not artifact either.


CPU - T2300 1.66GHz
Memory - 1GB 533MHz
Screen - WUXGA
HD Size/Speed - 80GB 5400
Single Pipe
Driver - WHQL Nvidia 91.31
Power Supply - 90W
Core/Memory/Voltage - 550/600/1.24V
3DMark05 - 7910

Best T2300 Score EVA
LL
Reply
Reply
post #146 of 741
6/27/06 at 4:10am
Sorry for interruption, however i can't seem to get it to boot from the CD. I have:
1. Downloaded Jokers ISO package
2. Burnt the image to CD using nero
3. Hit f12 to boot from CD-DVD rom

then all i get is a black screen with nothing, nothing happens. Any suggestions as to what to do? Sorry once again

CHeers!
Reply
Reply
post #147 of 741
6/27/06 at 11:46am
Thread Starter
updates done for the day.

To get your score posted, please use the format below:

Score - Name - CPU / Memory / Screen / HD Size & Speed / Single or Dual-pipe Card / Driver Version / Power Supply @ Core/Memory/Voltage

SCREENSHOT REQUIRED AS BACKUP!

There are plenty of examples of this format in the first post. Take your time, submit it right!
Reply
Reply
post #148 of 741
6/27/06 at 1:33pm
My memory will not allow even 1150, return to proxycon has puppet string artifacts on the big guy with the vulcan type cannon. DARN IT!
Reply
Reply
post #149 of 741
6/27/06 at 2:19pm
I was getting the same thing with 1200 so I have dropt to 1150 and found that ATI was finding just one error on 1 pixcel so now I am running at 1120 and it's all cool 570/560
Reply
Reply
post #150 of 741
6/27/06 at 2:54pm
yeah i still need to make some more .roms for the 1110, 1120, 1130, 1140 ram speeds.

I will get to it eventually.
Reply
Reply
post #151 of 741
6/27/06 at 5:25pm
Nice scores!

but can someone publish their results on futuremark please?
Reply
Reply
post #152 of 741
6/27/06 at 10:02pm
Hello, just thought i'd post my 3Dmark05 score too:

8061 - Cookie092 - 1,83 Ghz / 1GB 533 / WXGA / 80GB 7200 / Dual-pipe / Stock Dell Driver / 90W PS @ 600/1150/1.24V

Reply
Reply
post #153 of 741
6/28/06 at 2:36am
If you guys are still discriminating against M1710's my M1710 I got as a replacement for my XPS gen 2 from dell just got:



2 GHz Core Duo
1 GB 667 Ram (will swap with my 2 GB 533 soon)
Geforce go 7900 gs @ 630/1201.25/1.24v

It is dual pipe (since its a M1710), temps max out at 80-81 C during atitool, they dont even get that high during the short 3dmarks, and I ran atitool for 74 minutes with no errors, so I am gonna keep it at these speeds.

stock dell drivers buy the way, some of the other ones wanted to make my system BSOD with IRQ_IS_NOT_LESS_OR_EQUAL, after rebooting, though the drivers did work until I rebooted.
Reply
Reply
post #154 of 741
6/28/06 at 3:10am
8703 - eth - 2.0GHz / 2GB 533 / WUXGA / 60GB 7200 / Single-pipe / XGM 91.31 / 90W PS @ 600/1100/1.24V

Reply
Reply
post #155 of 741
6/28/06 at 4:37am

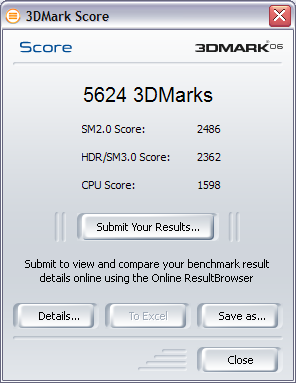

and to show the difference when you do it at 1280x800:

Reply
Reply
post #156 of 741
6/28/06 at 3:40pm
4875 - eth- 2.0GHz / 2GB 533 / WUXGA / 60GB 7200 / Single-pipe / XGM 91.31 / 90W PS @ 600/1100/1.24V

Reply
Reply
post #157 of 741
6/28/06 at 9:23pm
My replacement E1705's single pipe 7900 GS overclocks better than my dual pipe 7900 GS. Guess it has a better core so I'm going to be doing some swapping

Here's what I got at 620/1200 with the single pipe (other specs identical to my other system):




EDIT: New high score of 9189 at 640/1200..woot first place:

Reply
Reply
post #158 of 741
6/29/06 at 2:21am
Yeeeaah number one baby! Just got 9227 in 3dmark05 w/0 artifacting at 645/1200 (dual pipe) and max temp of 78C:





Also two 3dmark06 scores, first in 1280x800 and the second at 1440x900:

1. 1280x800 (5802 pts):

2. 1440x900 (5347 pts):
Reply
Reply
post #159 of 741
6/29/06 at 3:47am
Quote:
Originally Posted by 5150 Joker
Yeeeaah number one baby! Just got 9227 in 3dmark05 w/0 artifacting at 645/1200 (dual pipe) and max temp of 78C:





Also two 3dmark06 scores, first in 1280x800 and the second at 1440x900:

1. 1280x800 (5802 pts):

2. 1440x900 (5347 pts):

you are a monster man
Reply
Reply
post #160 of 741
6/29/06 at 4:26am
Congratulations Joker. Did you notice any difference in the temperature's between the single and dual-pipes? It would seem they offer the same performance.
Reply
Reply
